Applications :

• These connection cables are designed for use in signalling equipment rooms.

Standards :

• SE260
• UNE 21123



Construction :

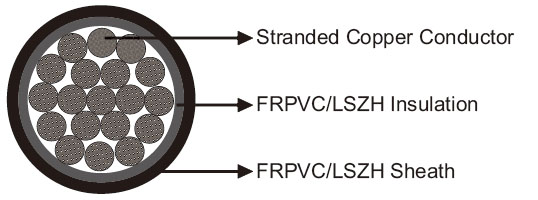

• Conductors : Stranded plain copper conductors to IEC 60228 class 2 or 5.
• Insulation : FRPVC.
• Outer sheath : FRPVC.

Optional :

• Limited fi re hazard pigtail rail connection cables: Stranded tinned copper conductors, LSZH composite insulation.

Electrical Characteristics at 20 °C :

• Nominal Conductor Cross Section	mm2	0.6
  Maximum DC Conductor Resistance	Ω/km	1.15/1.16*
  Voltage Rating	KV	0.6/1.0

• *For LSZH cable

Mechanical and Thermal Properties :

• Minimum Bending Radius : 7.5×OD.
• Temperature Range : -25°C to +85°C(during operation) ; -10°C to +70°C (during installation).

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	No. & Nominal Diameter of Strands No/mm	Nominal Insulation Thickness mm	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
RF260-VV-K-0.6/1KV-1G16	1×16	19/1.04	0.7	1.4	10.3	249
RF260-RZ1-K-0.6/1KV-1G16	1×16	19/1.04	0.7	1.4	10.3	255

  K is changed to U if the stranding class is changed from class 5 to class 2.





PVC Sheath

Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1



LSZH Sheath

Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 Low Toxicity         Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
